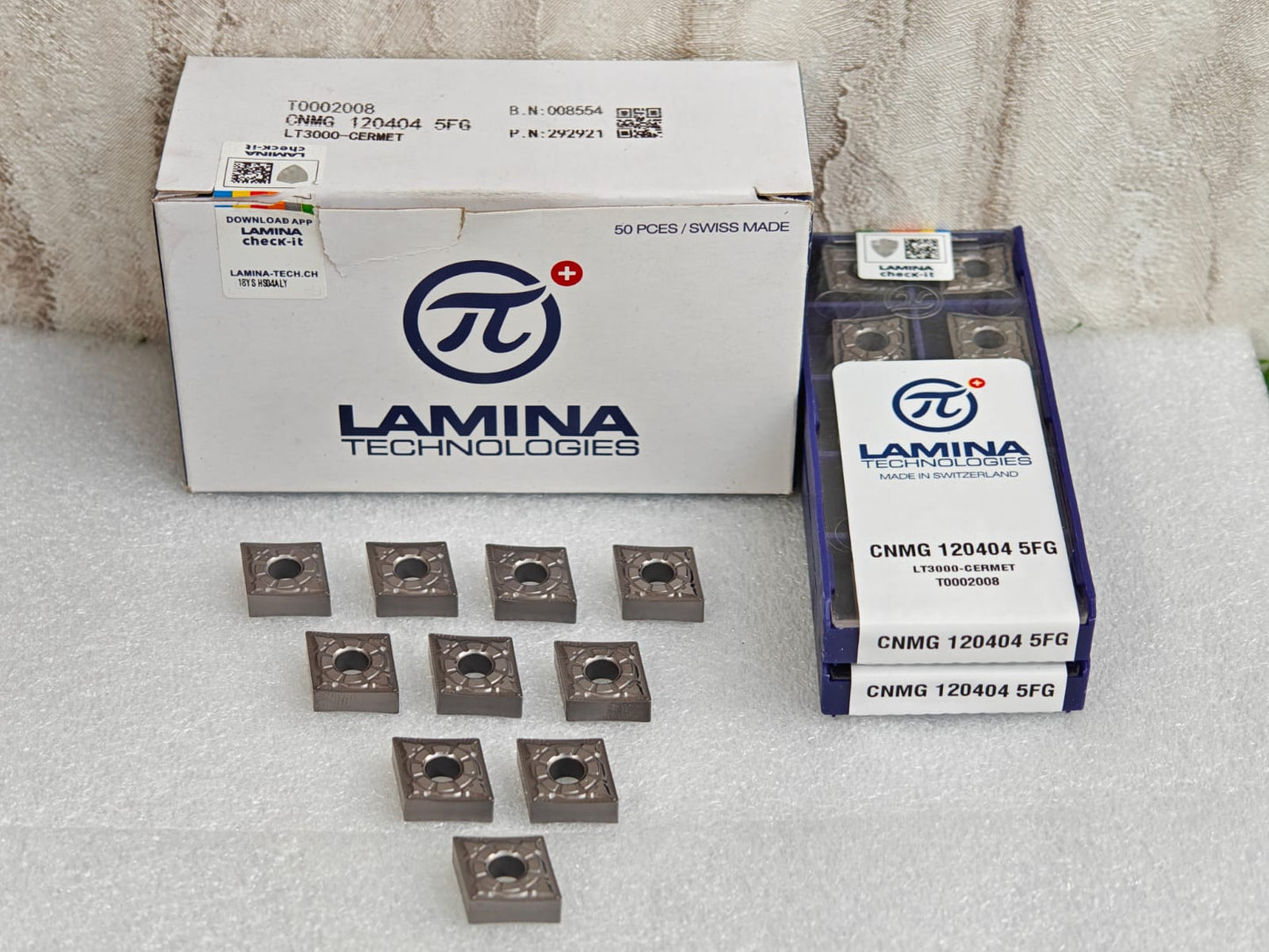

CNMG120404-5FG LT3000= (FG-CT3000 CERMET)

The CNMG120404 Is a type of indexable CERMET TURNING INSERT used primarily in machining applications. Here’s a detailed overview of its specifications and applications:

Key Features of CNMG120404:

1. Material Compatibility:

   • Suitable for machining Stainless Steel, Hard Steel, and Super-Alloys.

2. Cutting Speed:

   • Recommended cutting speed (Vc) ranges from 120 to 250 m/min.

3. Feed Rate:

   • The feed rate (Fn) is typically between 0.10 to 0.25 mm.
4. Grades Available:
   • The CNMG120404 is available in grade LT3000, which is tailored for different machining conditions. Designed for high-speed machining on different metal applications.
5. Packaging:
   • Packing options of LAMINA Brand insert, are available in packs of 10 piece plastic box & 50 piece carton box.

   • Summary: The CNMG120404 CERMET TURNING INSERT is a versatile tool that enhances efficiency across various materials. Its design and specifications make it a preferred choice for many machining tasks.
