SPMT04T102-ND1 NT6065 PVD grade = (SPMG04T102)

The SPMT04T102 is a type of indexable DRILLING INSERT used primarily in machining applications. Here’s a detailed overview of its specifications and applications:

Key Features of SPMT04T102 :

1. Material Compatibility:

   • Suitable for machining Stainless Steel, Hard Steel, and Super-Alloys.

2. Cutting Speed:

   • Recommended cutting speed (Vc) ranges from 140 to 200 m/min.

3. Feed Rate:

   • The feed rate (Fn) is typically between 0.05 to 0.10 mm.
4. Grades Available:
   • The SPMT04T102 is available in grade NT6065 , which is tailored for different machining conditions. Designed for high-speed machining on different metal applications.
5. Packaging:

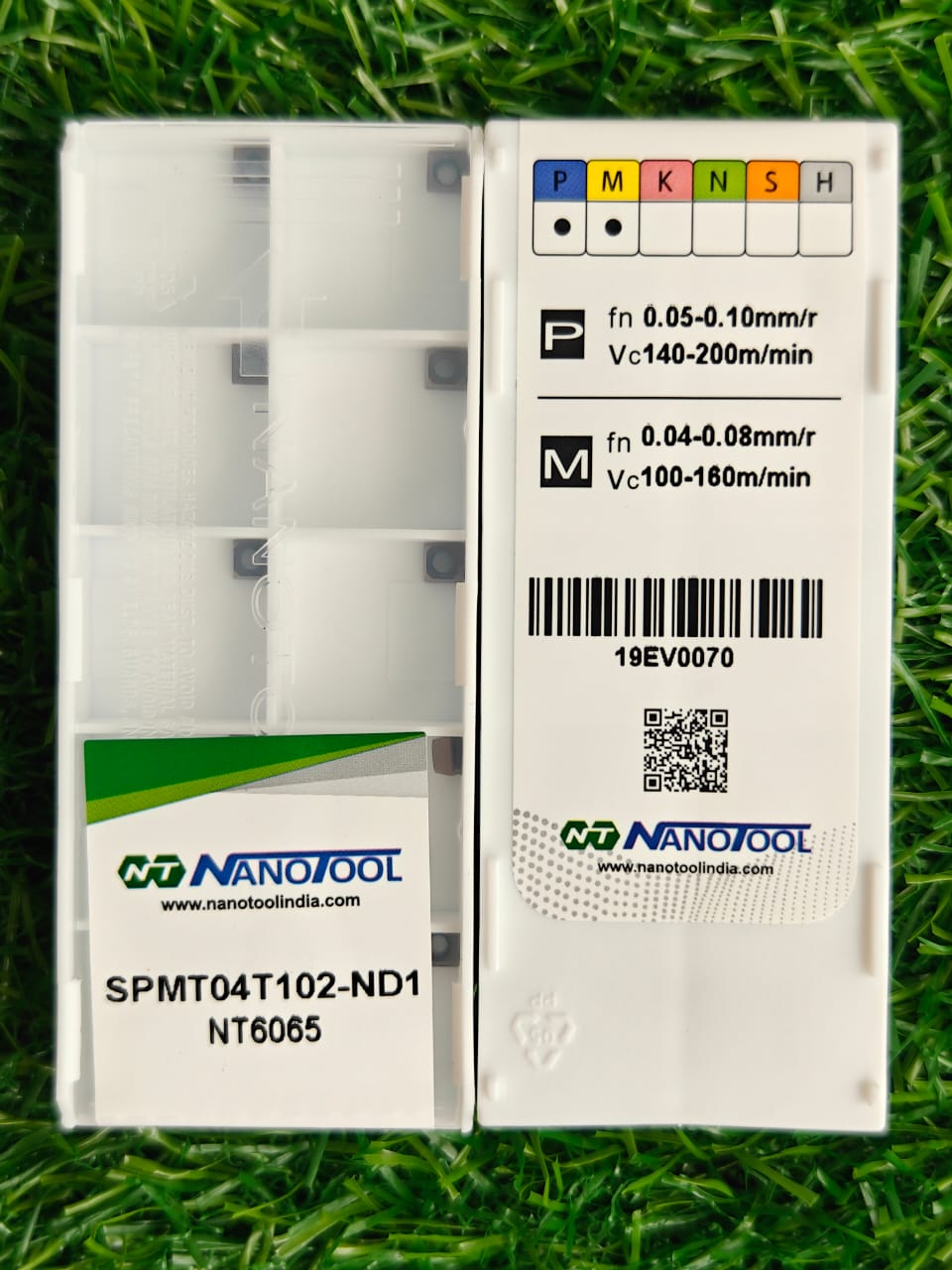

   • Packing options of NANOTOOL Brand insert, are available in packs of 10 piece plastic box & 50 piece carton box.

   • Summary: The SPMT04T102 DRILLING INSERT is a versatile tool that enhances efficiency across various materials. Its design and specifications make it a preferred choice for many machining tasks.
