WNMG060408-TS NT4145 PVD grade

The WNMG060408 is a type of indexable drill insert used primarily in machining applications. Here’s a detailed overview of its specifications and applications:

Key Features of WNMG060408:

1. Material Compatibility:

   • Suitable for machining Steel, Stainless Steel, and Super-Alloys/Titanium.

2. Insert Thickness:

   • The insert has a thickness of 2.38 mm.

3. Cutting Speed:

   • Recommended cutting speed (Vc) ranges from 150 to 220 m/min.

4. Feed Rate:

   • The feed rate is typically between 0.05 to 0.12 mm.

5. Applications:

   • Ideal for use with Indexable U drills of sizes 22mm, 22.5mm, 23mm, 23.5mm, 24mm, 24.5mm, 25,25.5mm, 26mm, 26.5mm, 27mm, 27.5mm
   • Grades Available:
   • The WNMG060408 is available in various grades, such as NT4145, which is tailored for different machining conditions:
   • Designed for high-speed machining on steel applications.

6. Packaging:

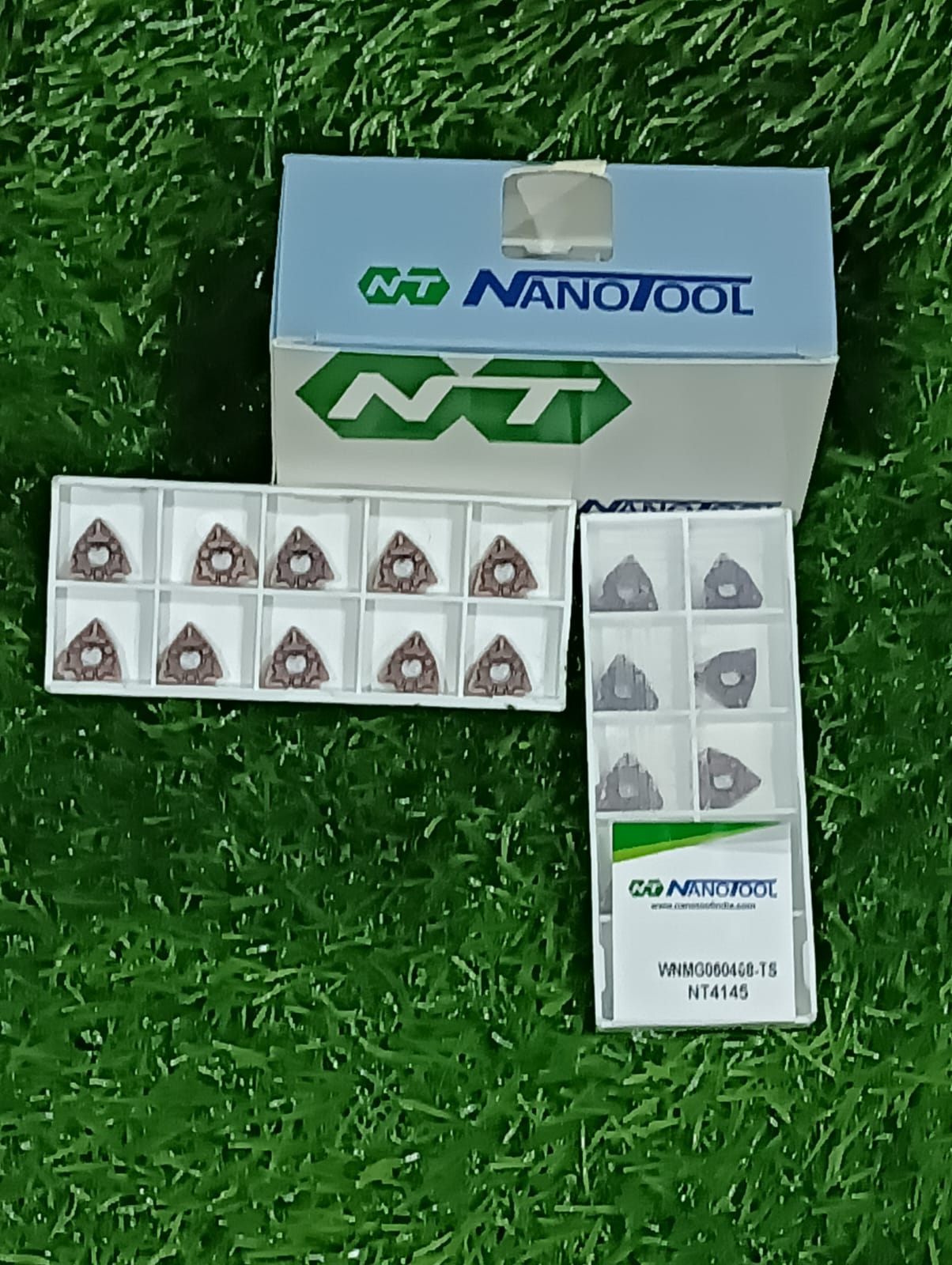

   • Some options, like the  NANOTOOL Carbide drilling insert, are available in packs of 10 piece plastic box & 50 piece carton box.
   • Summary: The WNMG060408 insert is a versatile tool that enhances efficiency in drilling operations across various materials. Its design and specifications make it a preferred choice for many machining tasks.
